| MultiSense® Stereo Cameras |
| Ruggedized Stereo Cameras for Robot Autonomy |
 |
| MultiSense® KS21i |
| INDOOR |
| Two monochrome imagers with IR Pass filter glass for depth sensing paired with IR pattern projectors, One RGB color imager for further flexibility and context when reviewing data. |
|
| Use Cases: Autonomous indoor vehicles (i.e. floor scrubbers, pallet jacks, etc.) that need to operate in dynamically lit environments. |
 |
 |

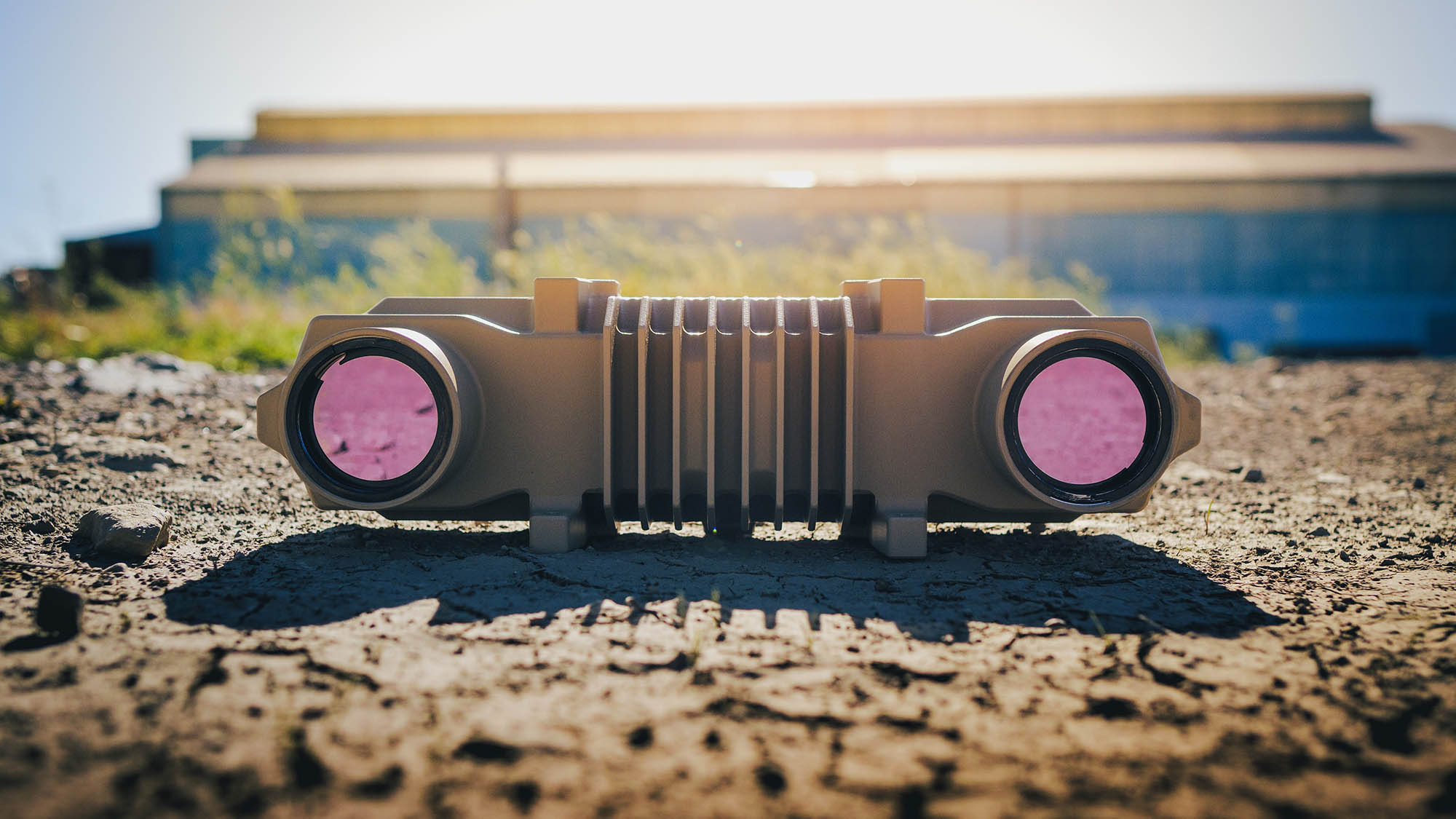

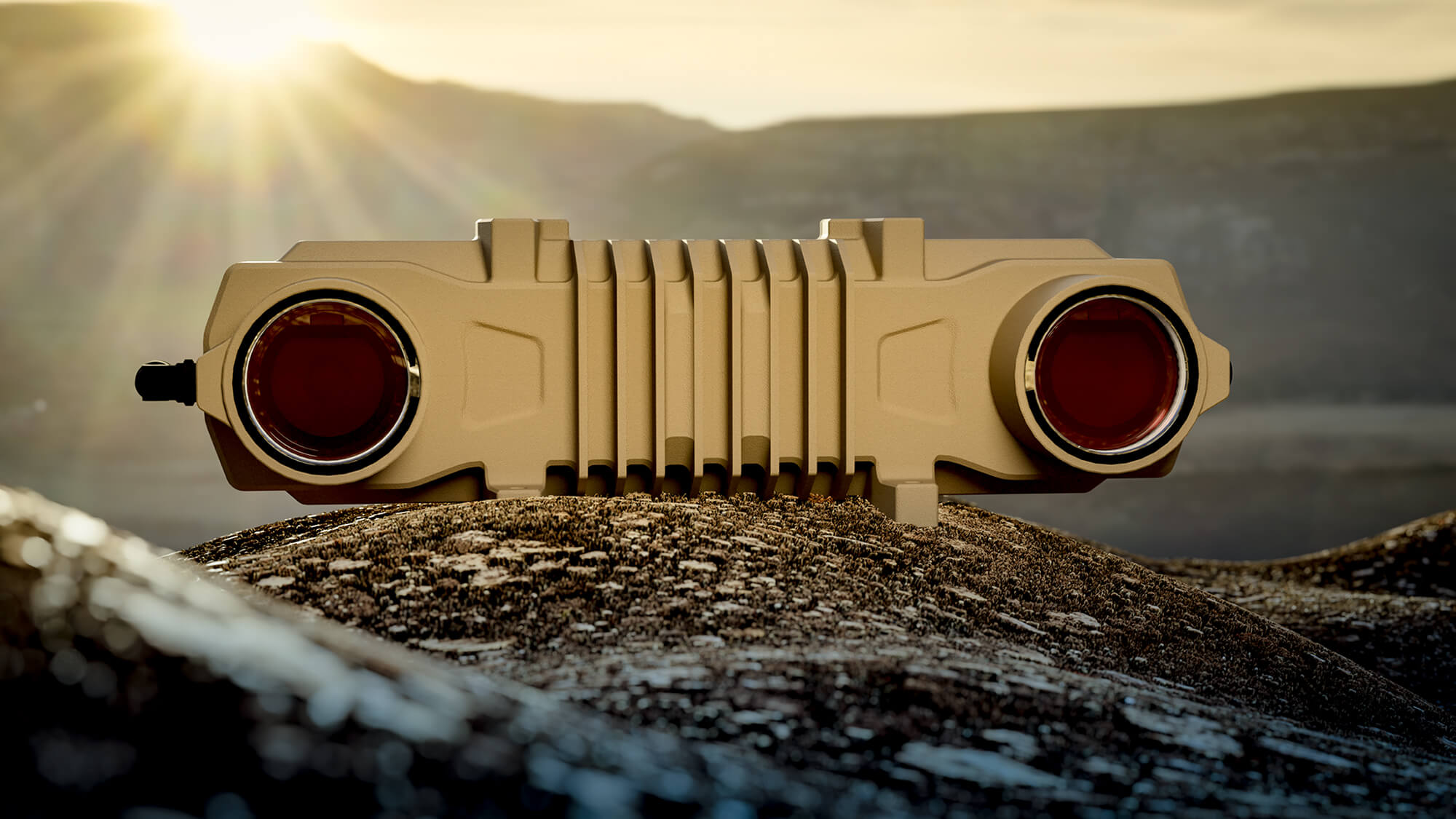

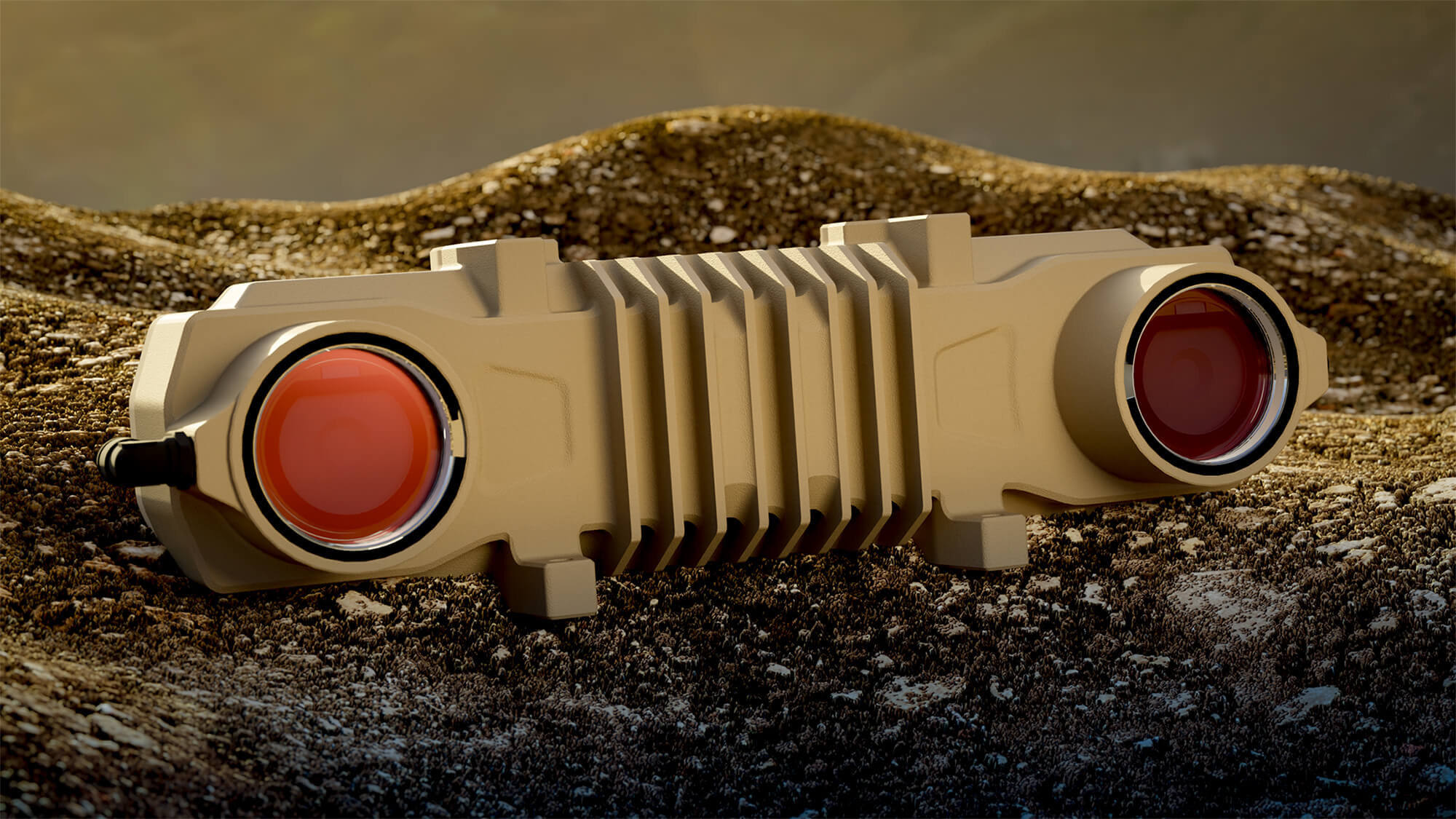

| MultiSense® ST25 MEGA |
| THERMAL - OUTDOOR - RUGGED |
| Two non-emitting, thermal imagers with integrated anti-fog and lens cleaning system. |
|
| Use Cases: Autonomous outdoor vehicles that require stealth during night operations. The Sensor is ruggedized to withstand harsh elements and terrain. |
|
 |
| MultiSense® S27 |
| OUTDOOR - RUGGED |
| Two monochrome imagers for depth sensing, paired with an RGB color module, all with a view angle that is 24° below horizontal and a wide-angle field of view. |
|
| Use Cases: Ideally mounted on top of an autonomous outdoor vehicle. |
|
 |
| MultiSense® S30 |
| OUTDOOR - RUGGED |
| Two monochrome imagers for depth sensing, paired with an RGB color module, all with a view angle that is parallel to the mounting plane, ideal for straight-ahead, long-range depth perception. |
|
| Use Cases: Autonomous outdoor vehicles, equipment monitoring that require depth perception at a longer range. |
|
| The MultiSense® Family |
| Indoor & Ruggedized Outdoor Stereo Cameras |
| Realtime 3D sensing with the fastest data compute on the market for harsh and dark environments. MultiSense® cameras provide a powerhouse of on-board stereo processing for your toughest projects. Onboard processing allows for ground plane modeling, and more, all without the need of a supplemental compute box. |
Realtime 3D sensing for all environments |
| Indoor Operations |
| Outdoor Operations |
| Heavy Duty & Industrial Operations |
MultiSense® baseline lengths range from 21cm to 30cm |
| Full Screen | X - Close |
| Full Screen | X - Close |
| Full Screen | X - Close |
| Let MultiSense® Guide Your Fleet |

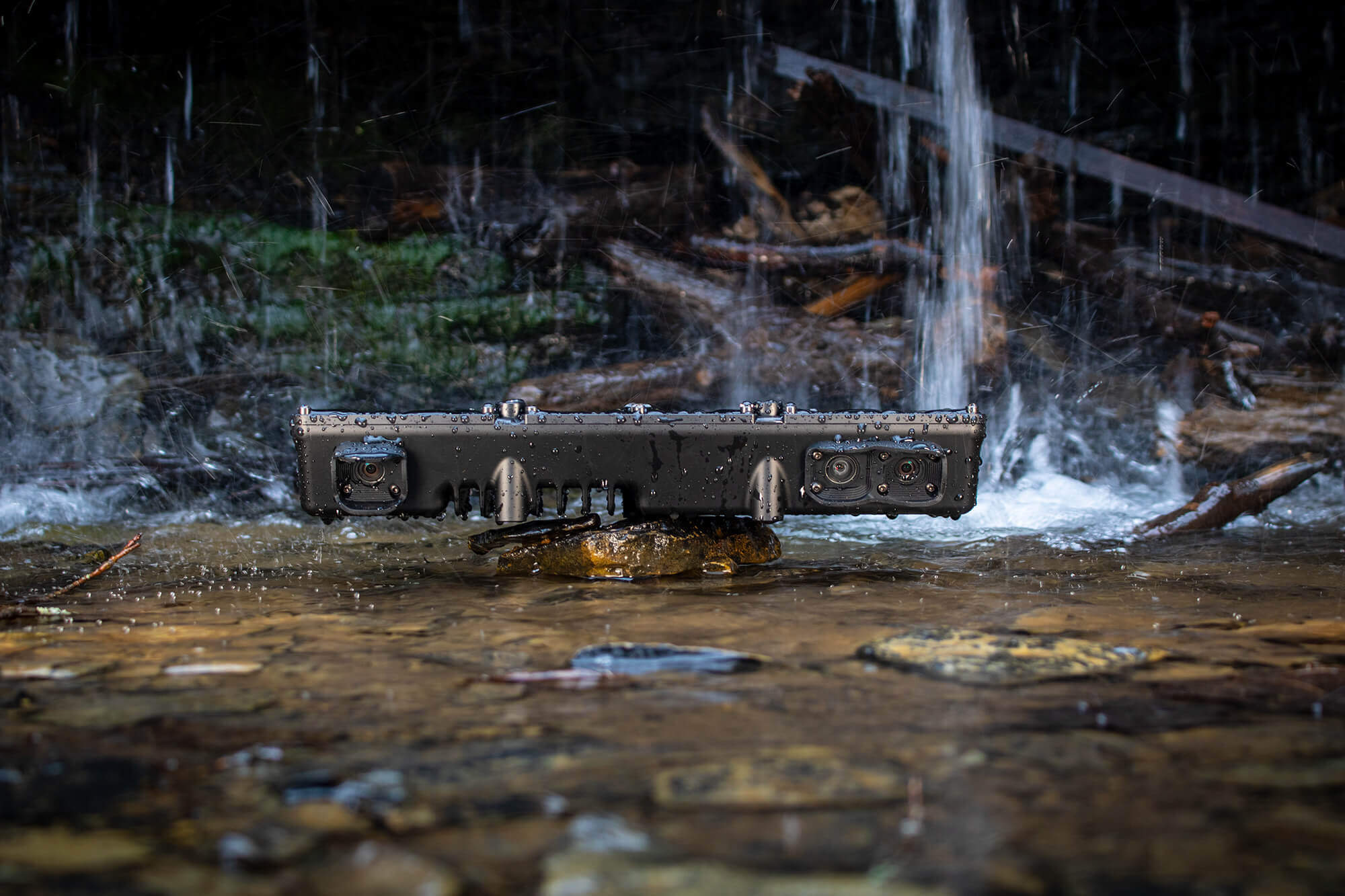

In the rain, sleet, or snow, MultiSense® Stereo Cameras can guide your autonomous vehicles in all environments. |
    |
How do MultiSense® stereo cameras work? |
| Simulates Human Vision |
| MultiSense® stereo cameras use a principle of triangulation to determine how far an object is from the camera. Simply put, the camera’s processor finds matching objects in the left and right images, and notices that they are in different positions at different distances. |
| READ MORE |

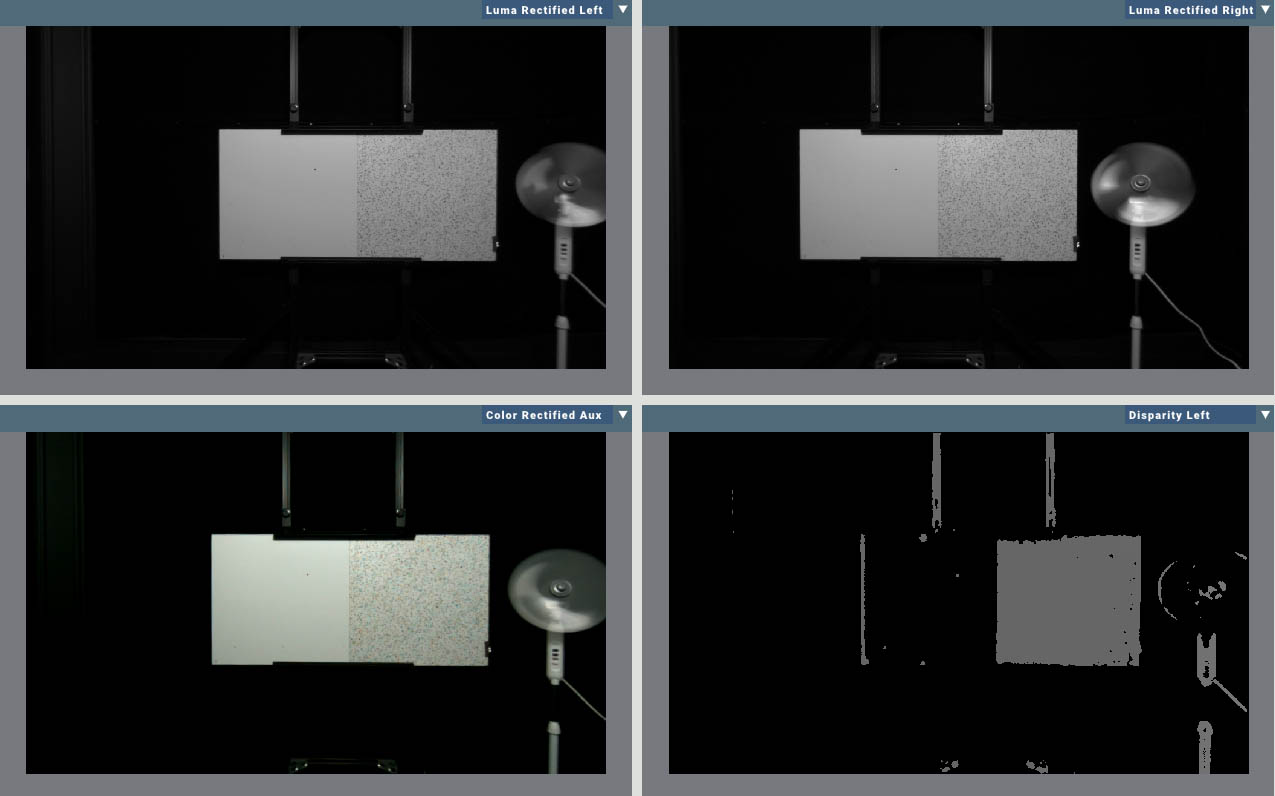

| Texture Detection |
| One of the important parameters for a stereo camera to function reliably is scene texture. This is the complexity and detail in the scene. Basically, a scene can never have too much texture or detail for a stereo camera. More is always better. |
| READ MORE |

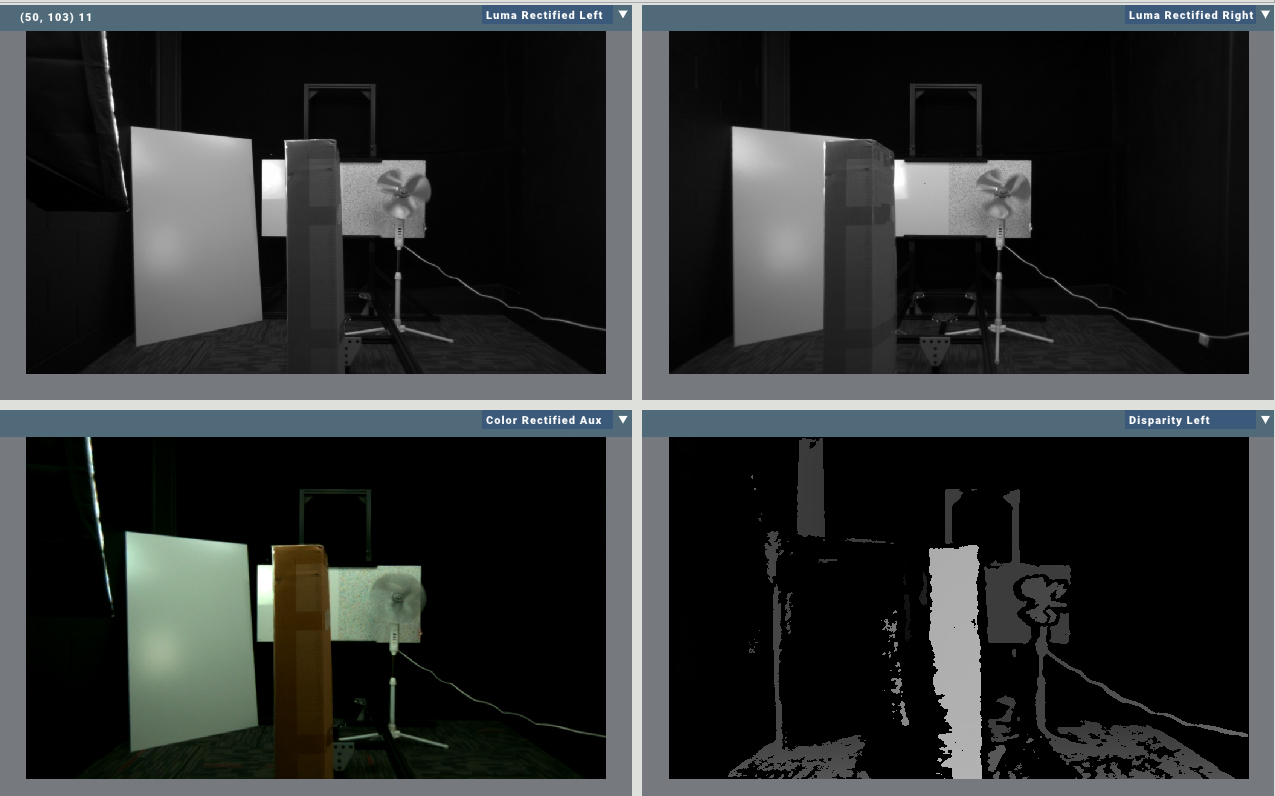

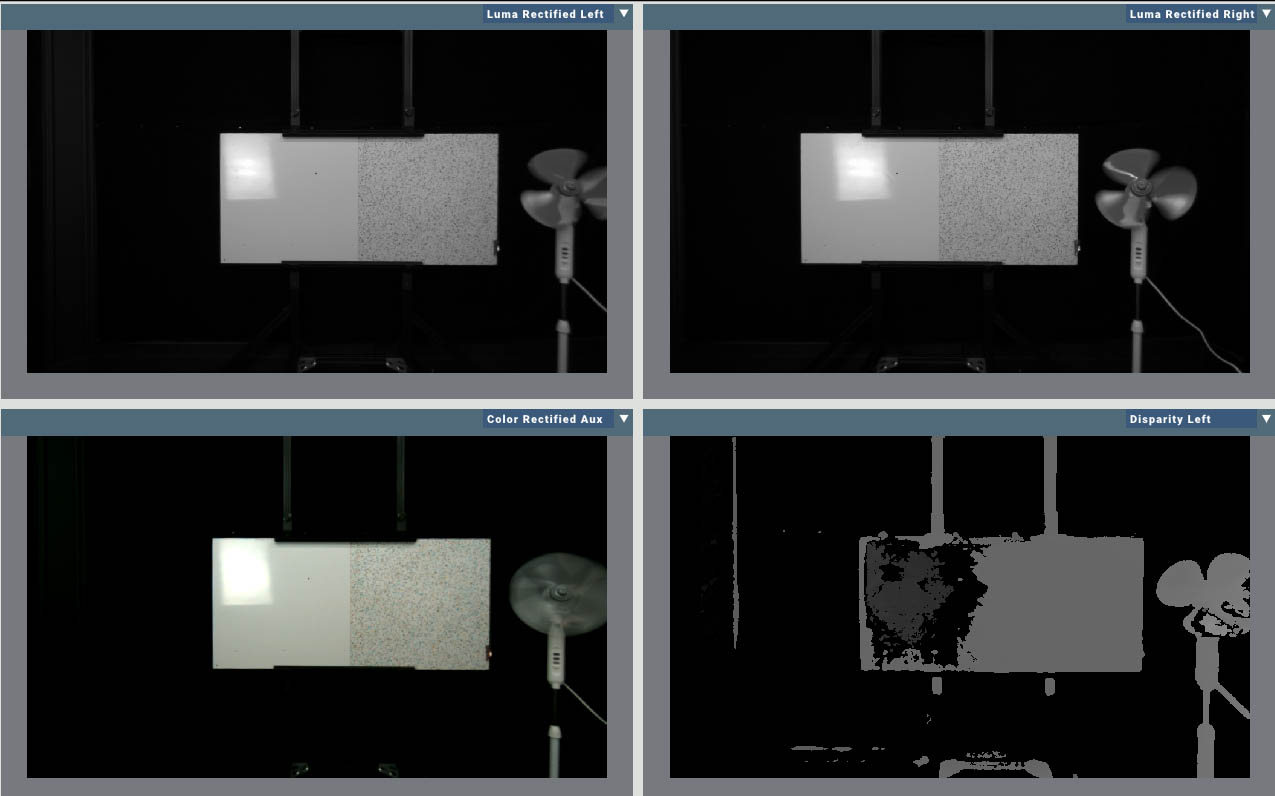

| Specular Reflections |
| The stereo algorithm operates on the critical assumption that all rays of light travel in a direct path. When specular reflections are present in a stereo scene, the algorithm may misjudge the distance of a reflected object. This presents itself as an artifact in the disparity calculation. |
| READ MORE |

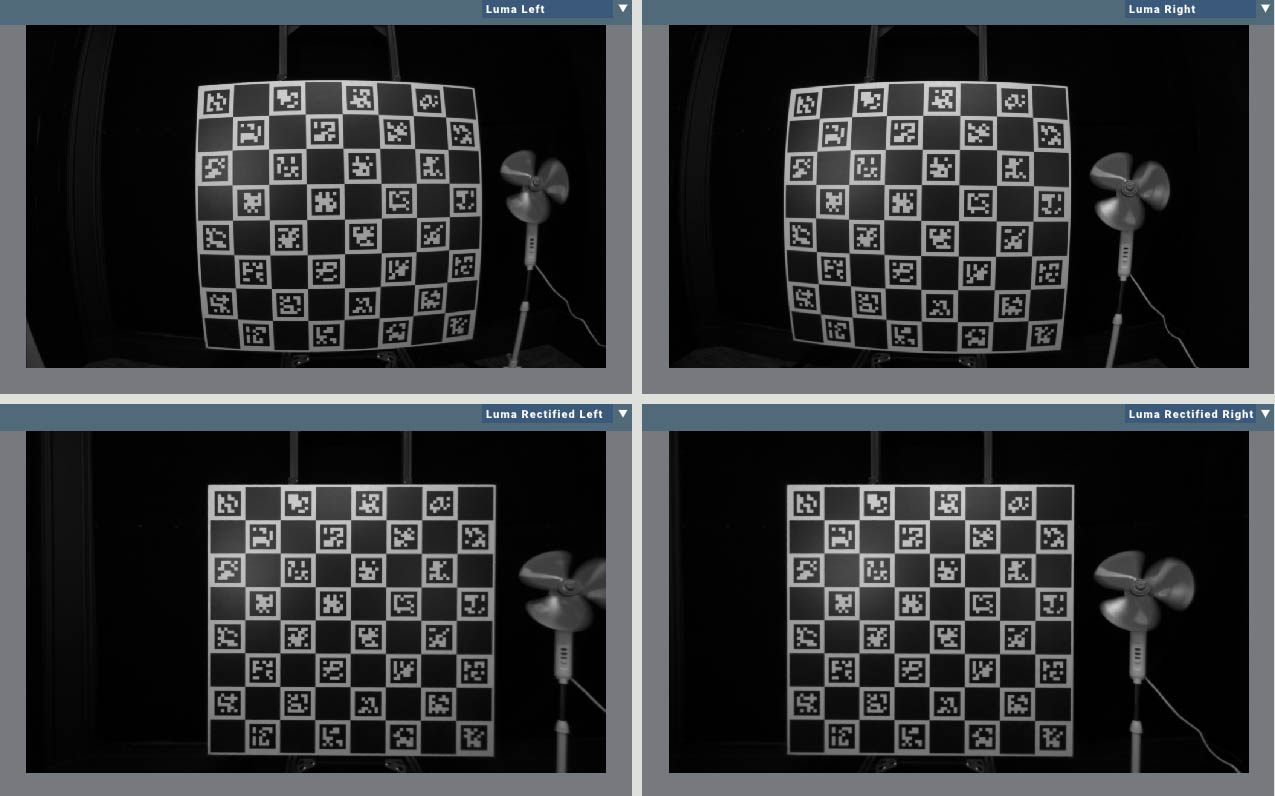

| Image Rectification |
| Rectification is the process of undistorting, rotating, and shifting the left and right images of the stereo camera so that they align with one another. This greatly simplifies the stereo matching, because it guarantees that features in the left and right images will occur on the same row of the image. |
| READ MORE |
This is all processed on-board our MultiSense® Family of stereo cameras. No additional computing needed! |
| Got questions? |
| We have answers, contact us! |
Depth CameraOur rugged depth cameras stand out as the leading choice of stereo cameras for robot autonomy. Designed to operate flawlessly across diverse environments, these stereo cameras exhibit exceptional durability and environmental resilience. Whether deployed in the challenging terrains of mining sites or the structured confines of warehouses, their robust design ensures unmatched performance in industries such as construction, rail, military, and farming. The innovative stereo depth solutions they offer include ROS2 compatibility for seamless system integration and maintain low latency with persistent calibration, ensuring real-time, accurate data processing without compromising image quality. With superior 3D imaging capabilities, the MultiSense® Stereo Camera Family provides precise, reliable depth perception, enabling robots to navigate and interact with their surroundings effectively. These ruggedized stereo cameras are engineered to withstand harsh conditions, delivering consistent performance in extreme environments—be it scorching or freezing temperatures, heavy rains, or dusty worksites. Enhance the functionality, reliability, and safety of your robotic systems by choosing MultiSense®. Made for integration in digital twins, autonomous safety sytems, and all autonomous solutions. Our depth cameras feature:Best Ruggedized Depth Cameras,Stereo Depth Solutions,Depth Vision Systems for Robotics,3D Depth Camera Mapping,Onboard Processing,Depth Vision for Harsh Conditions,High Stereo Frame Rate,ROS compatible 3D Depth Vision,Dual Camera Depth Sensor,Built in the USA. We sell Stereo Cameras, Rugged, Indoor and Outdoor Depth Cameras, 3D Robotics Cameras, 3D Robotics Cameras Sale, Thermal Depth Cameras, Durable Outdoor Stereo Cameras with IR projection, IP67 Rated Stereo Cameras For Autonomy, Top Rated Stereo Cameras For AI Robots, with the best depth precision. Buy industry leading, military-grade stereo cameras with on-board processing. Check out these top rated stereo cameras for sale: Depth Camera for Autonomy, Depth Camera for Industrial Autonomy, Durable Stereo Camera, Thermal Depth Camera, Top Rated Depth Cameras, NETT Warrior Body Worn Computer, RTK GNSS INS Receiver, Autonomous Off-Road Vehicle, Robotic Autonomy Products, Autonomy Engineering Services, Robot Autonomy Idea Submission, Autonomous Robot Dog, Autonomous Robot Farming, Autonomous Industrial Robots, Autonomous Boat Docking & Navigation, Robot Autonomy, Depth Camera Engineers. Depth Camera. |
